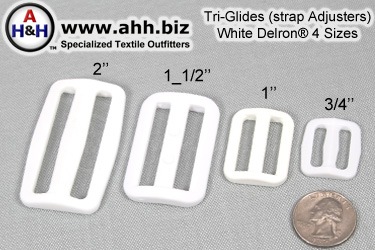

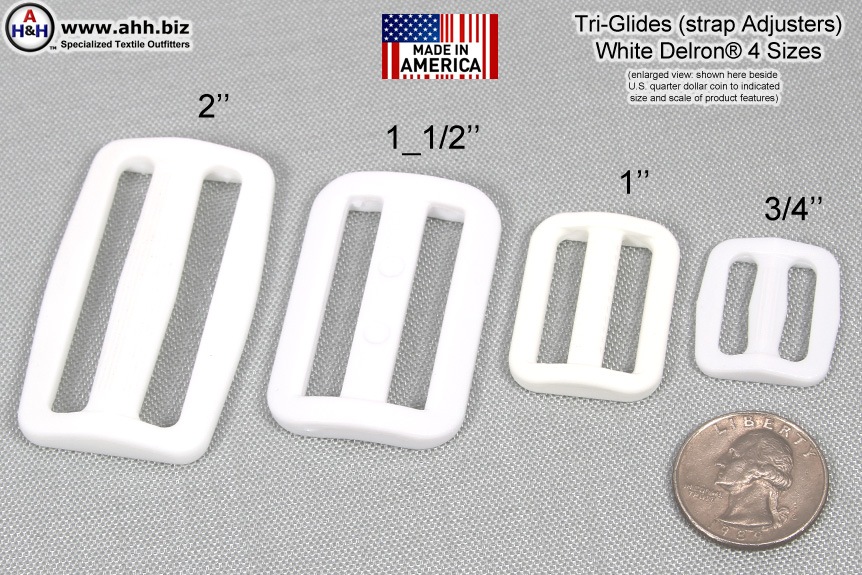

Hardware> Tri-glides (Strap Adjusters)> Tri-glides, White Plastic
This Website works best with Chrome Web Browser
in four sizes for webbing: 3/4 inch (20mm), 1 inch (25mm), 1 1/2 inch (38mm), 2 inch (50mm)
Molded from Delrin® high strength plastic, these slip resistant Tri-Glides will help you take care of the loose ends. Tri-Glides are commonly used on webbing belts and carrying straps to adjust the length and neatly manage the slack by doubling it over. Usually used in conjunction with Side Release buckles or Snap-Hooks. Not intended for life safety devices.
Specifications and old Model Numbers:
Overall length:
Size, Model Number, Length
3/4″ (TGP075)...7/8
1″ (TGP100)...7/8
1 1/2″ (TGP150)..1 1/4
2″ (TGP200).1 1/4
Width
3/4″ (TGP075)...1
1″ (TGP100)...1 1/4
1 1/2″ (TGP150)...1 7/8
2″ (TGP200)...2 3/8
Overall Thickness
3/4″ (TGP075)...3/16
1″ (TGP100)...3/16
1 1/2″ (TGP150)...1/4
2″ (TGP200)...5/16
Search Terms / Also Called: strap adjuster, webbing hardware, webbing tensioner, tri glide
3/4 inch | H30A-PLNO-TRGL-0750-WT 0.015 lbs. (0.01 kg) |
1 inch | H30A-PLNO-TRGL-1000-WT 0.015 lbs. (0.01 kg) |
1 1/2 inch | H30A-PLNO-TRGL-1500-WT 0.030 lbs. (0.01 kg) |
2 inch | H30A-PLNO-TRGL-2000-WT 0.045 lbs. (0.02 kg) |
1- 99 Each | 0% |
100- 499 Each | 45% |
500- 999 Each | 50% |
1000- or more Each | 55% |
