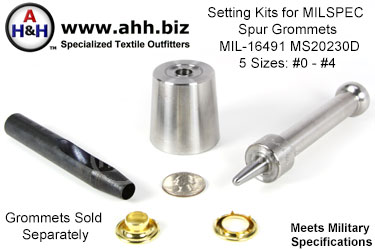

Spur Grommet Setting Tool Kit


Sets Military Specification (Mil-Spec) grommets that meet MIL-G-16491 MS20230D (ASG)

Spur Grommet Setting Kits for Mil-Spec MIL-G-16491 MS20230D (ASG) Grommets


These Tools are made specifically for Mil-Spec Spur Grommets


Approved, and in many cases, specified Spur Grommets and Washers meet MIL-G-16491 MS20230D (ASG), are manufactured in the United States of America and meet with the latest Military and Commercial Specifications. Made from solid brass and coated or plated. Spur grommets have spurs, sharp tooth like projections on the washers that penetrate into the fabric or leather they are installed into.

The specially rolled rim on the grommet body then sheathes the spurs and locks them in place. Spur grommets have much more holding power than standard, plain rim grommets.

Use only designated Spur Grommet setting tools to set these Spur Grommets, as the profile and shape of these grommet dies vary from plain grommet setting dies, to accommodate and properly bend the spurs into place during installation.

Note: We also carry the much less expensive Plain Grommets & Plain Grommet Setting Tools



Search Terms / Also Called: spur grommets, grommet, mil-g-16491, ms20230d



Product Information and Discounts


Product Name:
Spur Grommet Setting Kits for Mil-Spec MIL-G-16491 MS20230D (ASG) Grommets

Model No. / Shipping Weight
(Size 0) 1/4″ holeT01M-STNA-GSKT-N000-NA
1.40 lbs. (0.63 kg)
(Size 1) 9/32″ holeT01M-STNA-GSKT-N001-NA
1.80 lbs. (0.81 kg)
(Size 2) 3/8″ holeT01M-STNA-GSKT-N002-NA
2.20 lbs. (0.99 kg)
(Size 3) 7/16″ holeT01M-STNA-GSKT-N003-NA
2.40 lbs. (1.08 kg)
(Size 4) 1/2″ holeT01M-STNA-GSKT-N004-NA
2.80 lbs. (1.26 kg)
Hardware Model Numbers were updated January 2016



Product Specifications

  • No Minimum Order Quantity
  • Quantity Discounts are available
  • Products that are in stock in our warehouse can ship the same day.
