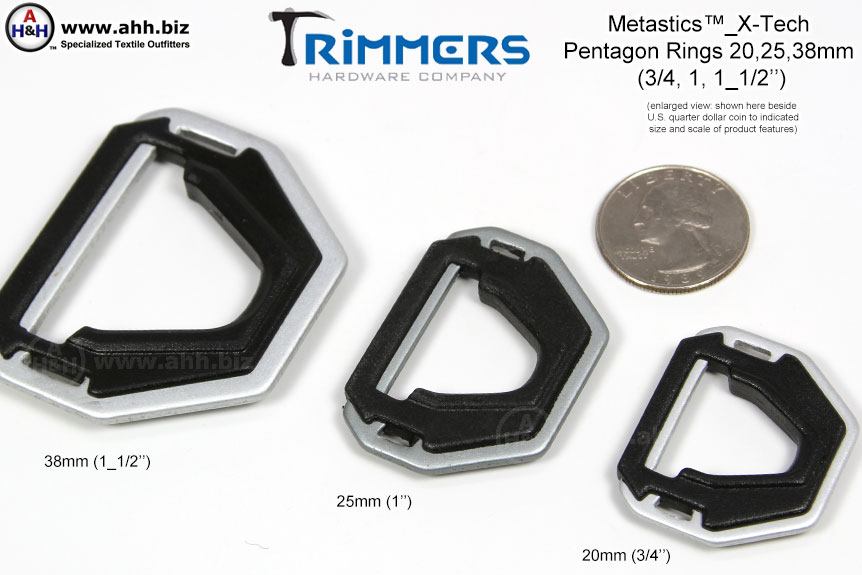

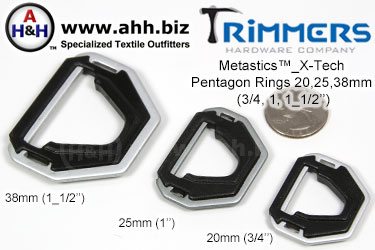

Metastics™ X-Tech Pentagon Rings - by Trimmers Hardware

in sizes for webbing widths: 3/4 inch (20mm), 1 inch (25mm) and 1 1/2 inch (38mm)

Not just good looking, but strong and lightweight too.

Futuristic looking Metastics™ X-Tech Pentagon Rings are a fresh take on the utilitarian and indispensable D-ring. Constructed of Alloy Aluminum with integrally molded glass fiber reinforced Nylon, for high strength and light weight.

Reinforced nylon inserts are molded directly into holes punched into the aluminum alloy frame which means they won't fall out or come loose with extended use. These high strength-to-weight ratio components are excellent for making super lightweight, but high performance luggage and gear for extreme applications where equipment weight is critical, like mountaineering, aircraft carry on bags and harnesses for wildlife monitoring rigs.

Reasonable maximum expected working loads:
3/4 inch (20mm) size     - 22 kg (50 lbs.)
1 inch (25mm) size        - 27 kg (60 lbs.)
1 1/2 inch (38mm size) - 33 kg (75 lbs.)

Dimensions: (W, L, H) (maximum external measurements) and weight
20mm size - 36 x 30 x 5.6 mm, 4.5 g
25mm size - 44 x 32 x 5.8 mm, 7.0 g
38mm size - 57 x 47 x 7.5 mm, 14.5 g

* Not for safely supporting human loads.

Search Terms / Also Called: webbing rings, d-ring, d ring, pentagon ring, composite rings

Product Information and Discounts

Product Name:
Metastics™ X-Tech Pentagon Rings

Model No. / Shipping Weight
3/4 inch
0.025 lbs. (0.01 kg)
1 inch
0.035 lbs. (0.02 kg)
1 1/2 inch
0.060 lbs. (0.03 kg)
Hardware Model Numbers were updated January 2016

Quantity Discounts:
10- 99 Each5%
100- 499 Each10%
500- 999 Each15%
1000- or more Each20%

Product Specifications

  • No Minimum Order Quantity
  • Quantity Discounts are available
  • Products that are in stock in our warehouse can ship the same day.
