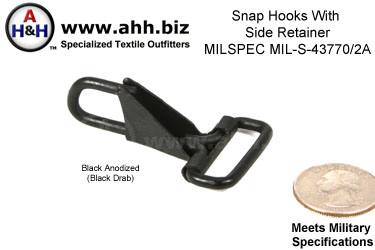

1 inch Snap Hooks with Side Retainer Mil-Spec MIL-S-43770-2A

Made for 1 inch (25mm) webbing

1 inch Snap Hooks with Side Retainer Mil-Spec MIL-S-43770-2A

Price: $15.00 Per 10 Pack
(before quantity discounts)

Used on military luggage, Made in America.

These Snap Hooks feature an alternate latch design that helps prevent snagging and "twist outs" associated with regular military style snap hooks with the spring flexing latch design.

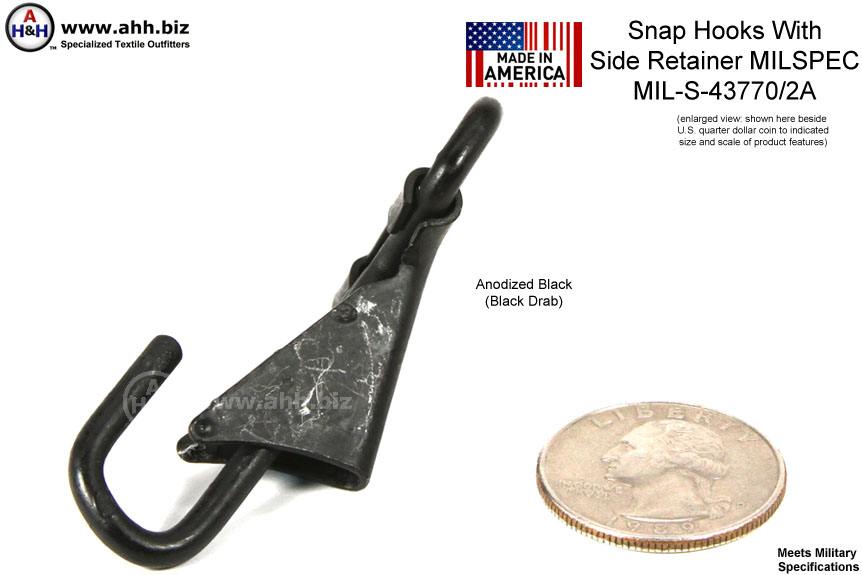

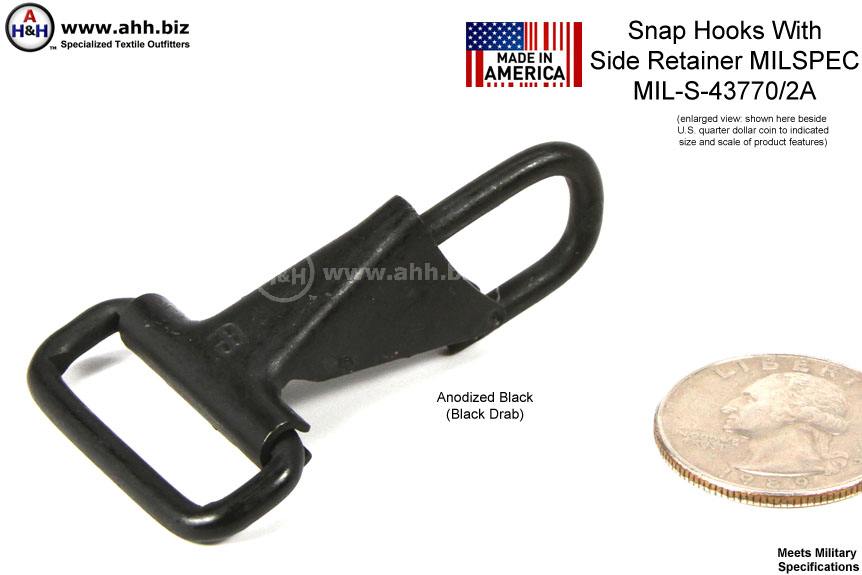

The side retainer consists of formed sheet metal that hinges on the webbing loop portion of the hardware piece. Dimples on both sides of the retainer, catch on the point of the hook and hold securely. Retainer can be tension adjusted with pliers and screw driver to increase or decrease holding force if needed.

Curved design of retainer, redirects force of ring or other object secured by the hook to enable the retainer hold tighter; preventing the secured item from twisting out of the hook and releasing itself during periods of abrupt or forceful movement and shock. Black Anodized finish reduces visibility and helps prevent corrosion. Not intended for life safety
devices. Refer to appropriate manuals for correct field usage. Meets Military Specifications described above. Made in America.

Size, Old Model Number , Dimension

(L) Length
1" (MSSHR100) 2.239"

(W) Width
1" (MSSHR100) 1.416"

(WT) Wire Thickness
1" (MSSHR100) 0.135"

(MHO) Maximum Hook Opening
1.0" (MSSHR100) 0.322"

All Sizes are +- 0.005"

Search Terms / Also Called: snap hook, webbing hook, military webbing hook, webbing clip, webbing hardware, MIL-S-43770-2A

Product Information and Discounts

Product Name:
1 inch Snap Hooks with Side Retainer Mil-Spec MIL-S-43770-2A

Model Number:
Hardware Model Numbers were updated January 2016

Shipping Weight:
0.5 lbs. (0.23 kg)

Quantity Discounts:
1- 9 Per 10 Pack0%
10- 49 Per 10 Pack20%
50- 99 Per 10 Pack25%
100- or more Per 10 Pack40%

Product Specifications

  • No Minimum Order Quantity
  • Quantity Discounts are available
  • Products that are in stock in our warehouse can ship the same day.

1 inch Snap Hooks with Side Retainer Mil-Spec MIL-S-43770-2A Colors

  • black
