Three sizes for 1 inch (25mm) webbing, 1 1/2 inch (38mm) webbing and 2 inch (50mm) webbing straps.

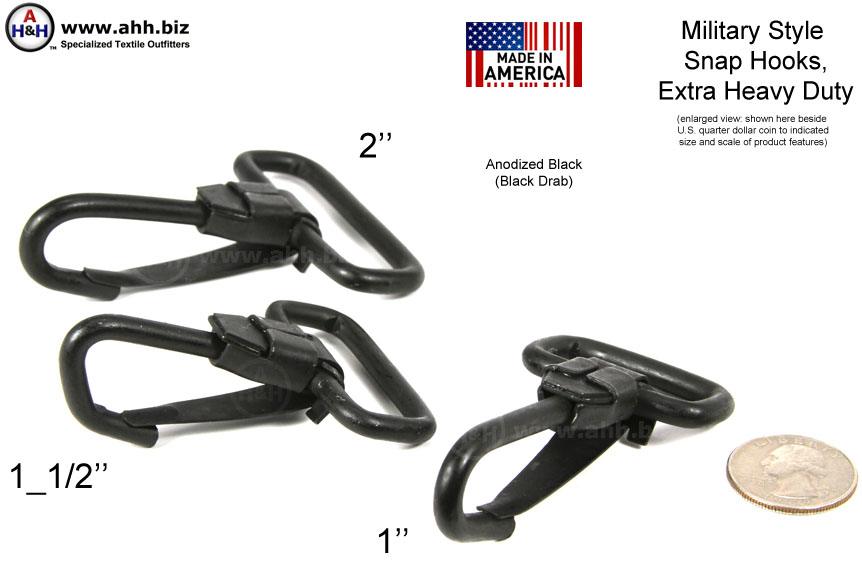

Use these all steel snap-hooks in applications where you need more strength and durability than plastic. Black Anodized finish reduces visibility and helps prevent corrosion. Single piece flexing latch design eliminates moving parts. Not the prettiest piece of hardware, but probably the most durable snap-hook invented. Same type used on U.S. military luggage and gear. Not intended for life safety devices.
Size, Old Model Number , Dimension
(L) Length
1.0" (HDMSH100) 3.190"
1.5" (HDMSH150) 2.762"
2.0" (HDMSH200) 3.171"
(W) Width
1.0" (HDMSH100) 1.636 inches
1.5" (HDMSH150) 1.927"
2.0" (HDMSH200) 2.479"
(WT) Wire Thickness
1.0" (HDMSH100) 0.194"
1.5" (HDMSH150) 0.194"
2.0" (HDMSH200) 0.210"
(MHO) Maximum Hook Opening
1.0" (HDMSH100) 0.378"
1.5" (HDMSH150) 0.378"
2.0" (HDMSH200) 0.378"
All Sizes are +- 0.005"
Search Terms / Also Called: snap hook, webbing hook, military webbing hook, webbing clip, webbing hardware
| 1 inch | H91A-STBA-MSSH-1000-BK 0.10 lbs. (0.05 kg) |
| 1 1/2 inch | H91A-STBA-MSSH-1500-BK 0.13 lbs. (0.06 kg) |
| 2 inch | H91A-STBA-MSSH-2000-BK 0.16 lbs. (0.07 kg) |
| 1- 99 Each | 0% |
| 100- 499 Each | 20% |
| 500- 999 Each | 25% |
| 1000- or more Each | 40% |
