Nickel Plated Brass Spur Grommets
Mil-Spec MIL-G-16491 MS20230D


Military Specification (Mil-Spec) Spur grommets, have teeth along the rim
that grip material better than plain rim grommets

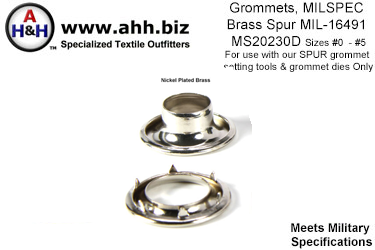

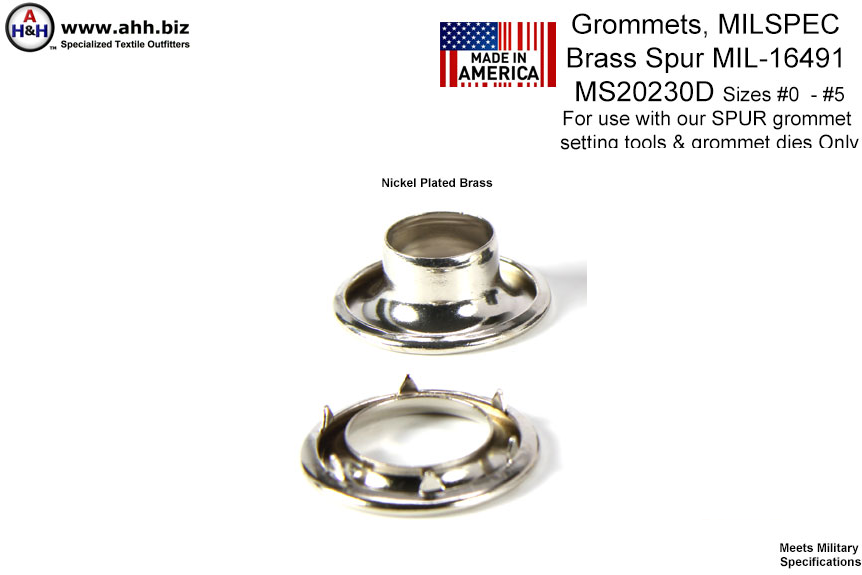

Nickel Plated Brass Spur Grommets Mil-Spec MIL-G-16491 MS20230D


Military Specification Grommets - Made in USA


Approved, and in many cases, specified; Spur Grommets and Washers meet MIL-G-16491 MS20230D (ASG), are manufactured in the United States of America and meet with the latest Military and Commercial Specifications.

Made from solid brass and coated or plated. Spur grommets have spurs, sharp tooth like projections on the washers that penetrate into the fabric or leather they are installed into. The specially rolled rim on the grommet body then sheathes the spurs and locks them in place.

Spur grommets have much more holding power than standard, plain rim grommets. Use only designated Spur Grommet setting tools to set these Spur Grommets, as the profile and shape of these grommet dies vary from plain grommet setting dies, to accommodate and properly bend the spurs into place during installation. Size 0 through Size 5 are sold by the gross (enough grommet parts for 144 grommets).

Note: We also carry the much less expensive Plain Grommets & Plain Grommet Setting Tools

Note: Spur Grommets require designated Spur Grommet Setting tools or Spur Grommet Die & Cutter sets, sold separately, and can not be installed properly using standard, plain rim grommet setting tools & dies.




Grommet Size (Numeric)
& Hole Diameter
Quantity in Box
(sets of grommets
& washers)
00
(3/16 inch Hole) (4.7mm hole)
144
0
(1/4 inch Hole) (6.3mm hole)
144
1
(9/32 inch Hole) (6.3mm hole)
144
2
(3/8 inch Hole) (7.1mm hole)
144
3
(7/16 inch Hole) (11.1mm hole)
144
4
(1/2 inch Hole) (12.7mm hole)
144
5
(5/8 inch Hole) (15.8mm hole)
144
6
(13/16 inch Hole) (20.6mm hole)
12
7
(29/32 inch Hole) (23.0mm hole)
12
8
(1 3/32 inch Hole) (27.7mm hole)
12
10
(1 1/2 inch Hole) (38.1mm hole)
20



Search Terms / Also Called: spur grommets, grommet, mil-g-16491, ms20230d



Product Information and Discounts


Product Name:
Spur Grommets Nickel Plated Brass (Silver Color)
Mil-Spec MIL-G-16491 MS20230D


Model No. / Shipping Weight
(Size 0) 1/4″ holeH71M-BRNP-GROM-0144-00
lbs. (0 kg)
(Size 1) 9/32″ holeH71M-BRNP-GROM-0144-01
1.20 lbs. (0.54 kg)
(Size 2) 3/8″ holeH71M-BRNP-GROM-0144-02
2.00 lbs. (0.9 kg)
(Size 3) 7/16″ holeH71M-BRNP-GROM-0144-03
2.20 lbs. (0.99 kg)
(Size 4) 1/2″ holeH71M-BRNP-GROM-0144-04
3.20 lbs. (1.44 kg)
(Size 5) 5/8″ holeH71M-BRNP-GROM-0144-05
4.00 lbs. (1.8 kg)
Hardware Model Numbers were updated January 2016

Quantity Discounts:
1- 23 Pack0%
24- 59 Pack5%
60- 143 Pack6%
144- or more Pack10%


Product Specifications

  • No Minimum Order Quantity
  • Quantity Discounts are available
  • Products that are in stock in our warehouse can ship the same day.
