StrandTex™ Polypropylene Filter media fabric


For Liquid filtration applications

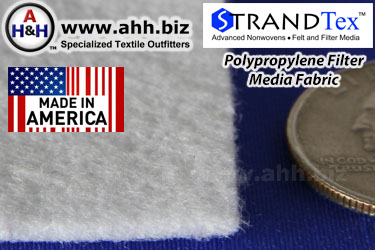

StrandTex™ Polypropylene Filter media fabric

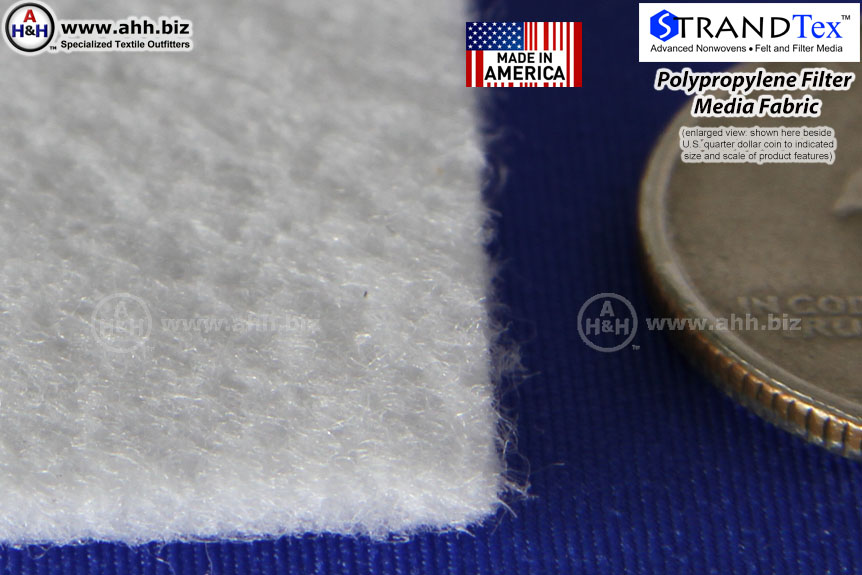

  • StrandTex™ Polypropylene Filter media fabric enlarged view #1
  • Enlarged Photo Slot #2 of 8 - Empty - There are no additional photos for this item
  • Enlarged Photo Slot #3 of 8 - Empty - There are no additional photos for this item
  • Enlarged Photo Slot #4 of 8 - Empty - There are no additional photos for this item
  • Enlarged Photo Slot #5 of 8 - Empty - There are no additional photos for this item
  • Enlarged Photo Slot #6 of 8 - Empty - There are no additional photos for this item
  • Enlarged Photo Slot #7 of 8 - Empty - There are no additional photos for this item
  • Enlarged Photo Slot #8 of 8 - Empty - There are no additional photos for this item
  • Enlarged Photo Slot #9 of 9 - Empty - There are no additional photos for this item
  • Enlarged Photo Slot #10 of 10 - Empty - There are no additional photos for this item

Purchasing Information:

StrandTex™ Polypropylene Filter media fabric
Roll Size:100 Ea.Model #: FB5A-PPNO-FELT-ZS
Priced as low as... $10.17 Each
Base Shipping Weight:
Linear Yard(s) of 10 Micron Size --- 2.10lbs.
Linear Yard(s) of 25 Micron Size --- 2.10lbs.
SAMPLES - SMALL 2″ X 2″ of 10 Micron --0.01lbs.
SAMPLES - SMALL 2″ X 2″ of 25 Micron --0.01lbs.
SAMPLES - LARGE 12″ X 12″ of 10 Micron --0.06lbs.
SAMPLES - LARGE 12″ X 12″ of 25 Micron --0.06lbs.

Quantity Level

Discount

0- 0 Each0
0- 0 Each0
0- 0 Each0
100- or more Each10%

Nonwoven filtration fabric for liquids

Polypropylene filter fabric stocked in 10 and 25 Micron sizes, other sizes are available upon request. This material is 100% Polypropylene, needle punched.

Specifications & Physical Properties:

10 Micron:
Width: 1829mm (72 inches)
Nominal thickness: 2.03mm (0.080 inch)
Weight: 339 g/sq m (10.0 oz/sq yd)
Temperature tolerance: Maximum 121℃ (250℉), Constant: 93℃ (200℉)
Air Permeability ASTM D737: 60-120 Ft3/Ft2/min

25 Micron:
Width: 1829mm (72 inches)
Nominal thickness: 1.83mm (0.072 inch)
Weight: 356 g/sq m (10.5 oz/sq yd)
Temperature tolerance: Maximum 121℃ (250℉), Constant: 93℃ (200℉)
Air Permeability ASTM D737: 110-180 Ft3/Ft2/min

Note: Air Permeability is primary characteristic of these materials - Weight & Thickness are secondary characteristics and may be adjusted.

This product is sold in the following measures:

Sold by Linear Yard
Cut to order in One Yard increments - one continuous piece, ′X′ yard(s) long.
(′X′ = the quantity of yards you wish to purchase)
This material comes on rolls 72" (1829mm) in width.
One Yard = 72" (1829mm) wide X 36" (914mm) long (Approximately)
No refunds after yardage order is cut.

Sold as samples of these dimensions:

SMALL sample size 2″ X 2″ (50mm X 50mm)
LARGE sample size 12″ X 12″ (300mm X 300mm)
All samples have printed label cards (written in English) stapled to them identifying the material.
