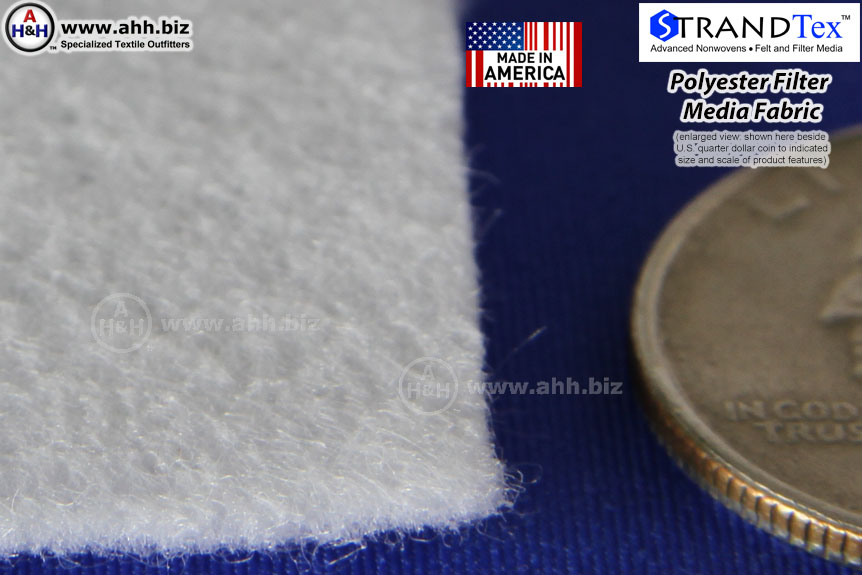

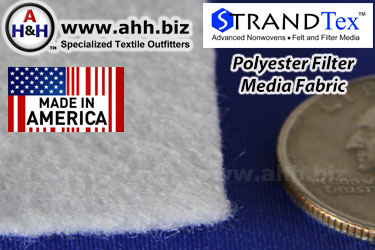

StrandTex™ Polyester Filter media fabric


For Air / Gaseous Substance filtration applications

Purchasing Information:

StrandTex™ Polyester Filter media fabric
Roll Size: 100 Ea. Model #: FB5A-PONO-FELT-ZS
Priced as low as... $8.64 Each
Base Shipping Weight:
Linear Yard(s) of 10 Micron Size --- 1.50lbs.
Linear Yard(s) of 25 Micron Size --- 1.50lbs.
SAMPLES - SMALL 2″ X 2″ of 10 Micron --0.01lbs.
SAMPLES - SMALL 2″ X 2″ of 25 Micron --0.01lbs.
SAMPLES - LARGE 12″ X 12″ of 10 Micron --0.06lbs.
SAMPLES - LARGE 12″ X 12″ of 25 Micron --0.06lbs.

Quantity Level

Discount

0- 0 Each 0
0- 0 Each 0
0- 0 Each 0
100- or more Each 10%

Nonwoven filtration fabric for Air / Gasous Substances

Polyester filter fabric stocked in 10 and 25 Micron sizes, other sizes are available upon request. This material is 100% Polyester, needle punched.

Specifications & Physical Properties:

10 Micron:
Width: 1829mm (72 inches)
Nominal thickness: 2.03mm (0.080 inch)
Weight: 339 g/sq m (10.0 oz/sq yd)
Temperature tolerance: Maximum 162℃ (325℉), Constant: 148℃ (300℉)
Air Permeability ASTM D737: 80-140 Ft3/Ft2/min

25 Micron:
Width: 1829mm (72 inches)
Nominal thickness: 2.16mm (0.085 inch)
Weight: 356 g/sq m (10.0 oz/sq yd)
Temperature tolerance: Maximum 162℃ (325℉), Constant: 148℃ (300℉)
Air Permeability ASTM D737: 130-210 Ft3/Ft2/min

Note: Air Permeability is primary characteristic of these materials - Weight & Thickness are secondary characteristics and may be adjusted.

This product is sold in the following measures:

Sold by Linear Yard
Cut to order in One Yard increments - one continuous piece, ′X′ yard(s) long.
(′X′ = the quantity of yards you wish to purchase)
This material comes on rolls 72" (1829mm) in width.
One Yard = 72" (1829mm) wide X 36" (914mm) long (Approximately)
No refunds after yardage order is cut.

Sold as samples of these dimensions:

SMALL sample size 2″ X 2″ (50mm X 50mm)
LARGE sample size 12″ X 12″ (300mm X 300mm)
All samples have printed label cards (written in English) stapled to them identifying the material.
